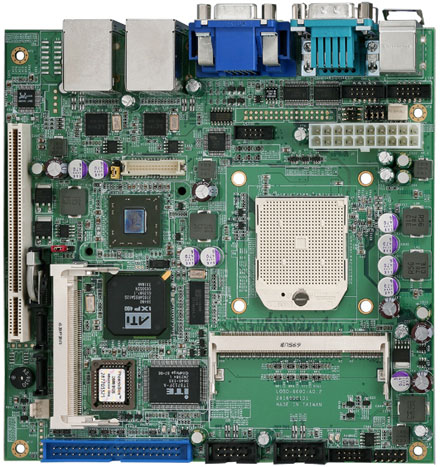

Commell LV-681 (for AMD Mobile Turion/Sempron)
PRODUCT IS CURRENTLY NOT AVAILABLE !
That mainboard incorporates an AMD S1 processor socket compatible with AMD Turion 64x2 Dual-Core, AMD Turion 64, and Mobile AMD Sempron processors. it also implements the ATI RS485M Chipset with ATI Radeon X-300-based 2D/3D graphics engine, dual display. This high level integration that optimizes the design of high performance, low-power-consumption solutions for embedded products, including thin clients, gaming, kiosk, point-of-sale, and other graphics-centric embedded applications.
Scope of supply :
- LV-681 Mainboard
- Quick-Start-Guide, Drivers-CD
- CPU cooler
- IDE-cable
- SATA cable
- Serial port cable
- I/O Bracke
[more]
| CPU | AMD S1 |
| Graphics | ATI RADEON X-300 |
| Formfactor | ITX (17x17cm) |
| RAM | 2x SO-DDR-II |
| Audio | Realtek ALC655 Codec |
| Base |
| USB | 8x USB 2.0 |
| Firewire | -- |
| IDE/SATA | 1x IDE, 2x SATA |
| LAN | 2x 10/100/1000 |
| Parallel | -- |
| Serial | 2x |
| no | TV-Out |
| yes | PCI |
| yes | Mini-PCI |
| yes | IDE |
| no | DVI |
| no | 800x480 Resolution |
| no | Passive-Cooling |
| no | PCI-Express |
| no | PCMCIA |
| yes | SATA |
| yes | CPU changeable |
| no | Compact Flash |
That mainboard incorporates an AMD S1 processor socket compatible with AMD Turion 64x2 Dual-Core, AMD Turion 64, and Mobile AMD Sempron processors. it also implements the ATI RS485M Chipset with ATI Radeon X-300-based 2D/3D graphics engine, dual display. This high level integration that optimizes the design of high performance, low-power-consumption solutions for embedded products, including thin clients, gaming, kiosk, point-of-sale, and other graphics-centric embedded applications.
Scope of supply :
- LV-681 Mainboard
- Quick-Start-Guide, Drivers-CD
- CPU cooler
- IDE-cable
- SATA cable
- Serial port cable
- I/O Bracket
- Support AMD Mobile Turion 64 x2 / Sempron
- 2 x 200-pin SO-DIMM support DDRII up to 2.0 GB
- Standard Mini-ITX PC industrial embedded systems
- Integrated ATI RADEON X-300 based 2D/3D graphics engine
- Integrated ALC655 codec, 2 x Giga Ethernet interface.
- 2 x SATA interface , CompactFlash socket
- USB 2.0 , RS232 , LVDS interface
- Mini-PCI socket , IDE support 40-pin DOM
- Standard 20-pin ATX power supply
Please login for creating product ratings.
from kurtum am 09.05.2008
| See all my comments
from myrus am 28.01.2008
| See all my comments
Your rating:
Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating.
If you want you also can leave a comment.
Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And
you can benefit from reports other customers are giving.
In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters)
on your account. The credit will be substracted automatically on your next order !
We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders).
"Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.
|
Customer ratings:
Average rating, based on 3 ratings |
from kurtum am 09.05.2008
| See all my comments
Magnifica board para intalação com o AMD Turion 64 X2-Mobiltechnology TL-56, versatil e facil de intalar aqui tem um boa solução para que necessita de interface LVDS. suporta memória DDRII até 533 Mhz
from myrus am 28.01.2008
| See all my comments
excelent board for use whit AMD Mobile Turion 64 X2 TL-56. it has 2 so-dmm conector that suport 2gb main memory and a Min-PCI socket you can connect the Wireless LAN Mini-PCI (with aerial) sold here in car tft
Compatible enclosures
CFI A-7879 V2 Mini-ITX enclosure (4x 3.5" NAS, 1x 2.5", Hot-Plug, 1x PCI, 250W)
M350 Mini-ITX enclosure
MHero-L-B Mini-ITX enclosure (1x PCI, Slimline ODD, 84W PSU)
MHero-L-R Mini-ITX enclosure (1x PCI, Slimline ODD, 84W PSU)
MHero-S-R Mini-ITX enclosure (with 84W PSU)
greetings I have some doubts about Article 1 still have in stock ?. 2 comes with dicipadores? 3- What is your warranty? 4 has the same problem the video chip that has the HP DV9000?
