CALUCORE-M-DVI - Core2Duo Car-PC Barebone *FANLESS* --DualChannel (DVI+DSUB)-- [new]

PRODUCT IS CURRENTLY NOT AVAILABLE !

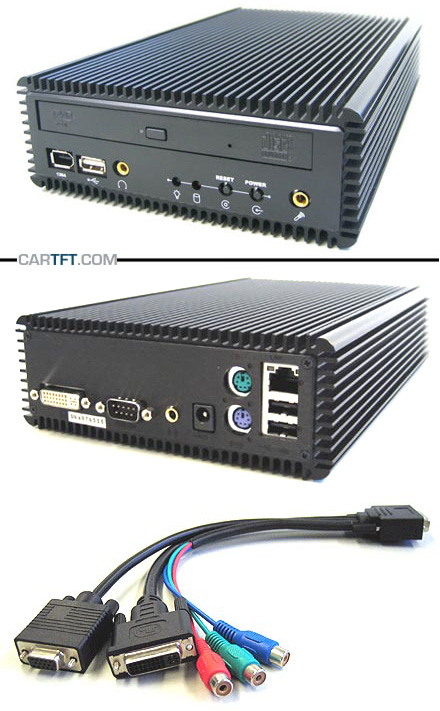

CALU<b>CORE</b>-M-DVI - Core2Duo Car-PC Barebone *FANLESS* --DualChannel (DVI+DSUB)-- [new]
  • FANLESS carpc system
  • Core2Duo
  • Dualchannel VGA
  • Intel 945 chipset

Fanless CarPC-barebone for use with Intel Celeron M440 CPU.



Graphics driver for 800x480 resolution : Here


Share

CPU Intel Pentium-M/Celeron-M, CoreDuo, Core2Duo
Graphics Intel Extreme Graphics 950
Formfactor Barebone
RAM 1x SO-DDR-II
Audio AC97 Codec
Base Intel
USB 3x USB 2.0
Firewire 1x
IDE/SATA 1x IDE, 1x SATA
LAN 1x 10/100/1000 Mbit
Parallel --
Serial 1x
yes TV-Out
no PCI
no Mini-PCI
yes IDE
yes DVI
yes 800x480 Resolution
yes Passive-Cooling
no PCI-Express
no PCMCIA
yes SATA
yes CPU changeable
no Compact Flash
CALU specifications
Processor (supported) Support Socket 479, FSB 533MHZ, FSB 667MHZ, Intel Mobil CPU (Celeron M 410, 420, 430, 440 & 450 CPU, Core Duo T2300, T2400, T2500, T2600 & T2700 CPU, Core 2 Duo T5500, T5600, T7200, T7400 & T7600 CPU).
Memory Support 1x SO-DDR-II RAM
Chipset Intel Intel 945GM / ICH 7M
Video Intel Graphics Media Accelerator 950
Audio Software AC '97 Audio CODEC
Peripheral Connection Front :
1 x IEEE 1394 Firewire port
1 x USB 2.0 / 1.1 Port
1 x MIC Port
1 x Ear Phone output Jack
Power-on button
Reset button
Power-on and HDD LED

Rear :
1 x RS232 COM port
1 x RJ45 10/100/1000 Mbit Fast Ethernet
1 x Line-Out output Jack
2 x USB 2.0 / 1.1 Ports
1 x 15 pin VGA
1 x DVI
1 x TV-Out
1 x 12v DC Power Jack input
Storage One 2.5 inch SATA Hard Disk
(Support Ultra DMA 33/66/100).
Weight & Size System approximately 3kg (fully equipped).
System Dimension: 155 x 255 x 55 mm
Power req. 12V, 5A
Accessory
Storage Supports all Standard Slim CD-ROM/DVD-ROM, CD-RW, DVD-RW Combo
Supports all 2.5" SATA IDE hard drive, ATA-100/66/33.
Scope of supply 110V/230V EU power supply
Barebone
CPU Kühlkörper
Data sheet Download (PDF)
Data sheet Print view
Assembling Tutorial [DE] Download (PDF)
Assembling Tutorial [EN] Download
