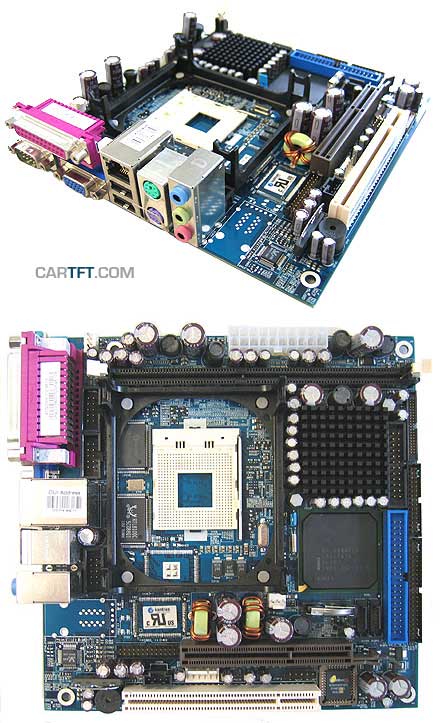

KONTRON 886LCD-M/mITX (for Pentium-M/Celeron-M) [without CF-slot]

PRODUCT IS CURRENTLY NOT AVAILABLE !

Pentium-M/Celeron-M

- Intel® Pentium® M and Intel® Celeron® M Processors (mPGA478 socket)
- Front Side Bus 400 MHz
- Intel® 855GME + Intel® 6300ESB Embedded Chipset
- Intel® Extreme Graphics 2 Controller
- Flat Panel Display Support
- Dual independent Display Support (incl. 2x LCD)
- Standard AGP slot for easy graphics expansion
- Up to 1GB PC2700/DDR333 SDRAM (incl. ECC)
- 1x 10/100 Mbps Ethernet
- 2x USB 2.0, 4x RS232C
- 2x ATA100 and 2x SATA150 IDE Controller
- On board RAID 0/1 support with SATA harddisk
- AC-97/DD5.1 compliant audio output & on board stereo amplifier.
- Unique API software support for control, setting and m [more]

CPU	Intel Pentium-M/Celeron-M @ 400 FSB
Graphics	Intel Extreme Graphics
Formfactor	ITX (17x17cm)
RAM	1x DDR 266/333
Audio	AC-97/DD5.1
Base	Intel ITX

USB	4x USB 2.0
Firewire	--
IDE/SATA	2x IDE, 2x SATA
LAN	1x 10/100
Parallel	1x
Serial	4x

no	TV-Out
yes	PCI
no	Mini-PCI
yes	IDE
no	DVI
yes	800x480 Resolution

no	Passive-Cooling
no	PCI-Express
no	PCMCIA
yes	SATA
yes	CPU changeable
no	Compact Flash

Data sheet	Download (PDF)
Data sheet	Print view
