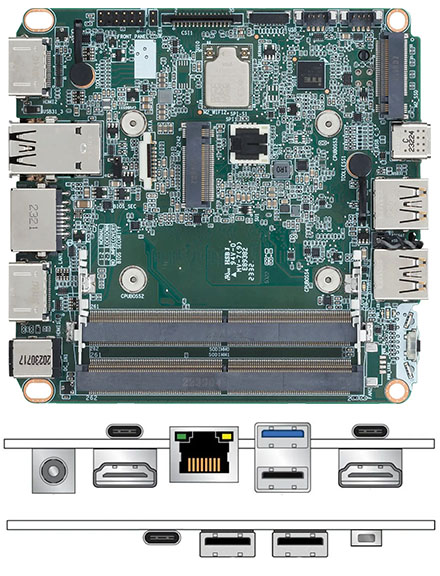

ASUS NUC14RVBi3 Board (Intel Core 3 100U, 2C+4c/8T, up to 4,7GHz, 2x HDMI, 2x Thunderbolt 4

ASUS NUC14RVBi3 Board (Intel Core 3 100U, 2C+4c/8T, up to 4,7GHz, 2x HDMI, 2x Thunderbolt 4
  • Core 3 100U !
  • Board only !
  • WNUC14RVBI300000I !
  • 90AR00F1-M00010 !

  • Formfactor: UCFF (4"x4")
  • CPU: Intel Core 3 100U, 2C+4c/8T, 1.20-4.70GHz, 10MB+8MB Cache, 15-55W TDP (PBP/MTP), Codename "Raptor Lake-U" (Raptor Cove + Gracemont, Intel 7)
  • RAM Slots: 2x DDR5 SO-DIMM, dual PC5-41600S/​DDR5-5200, max. 96GB (UDIMM)
  • Storage: 1x M.2/​M-Key (PCIe 4.0 x4, 2280), 1x M.2/​M-Key (PCIe 4.0 x4, 2242)
  • Graphics: Intel Graphics (iGPU), 4Xe/64EU/512SP, 1.25GHz, Architektur "Xe-LP / Gen 12.2" (Raptor Lake GT1)
  • Connectors rear: 1x USB-A 3.1 (10Gb/​s), 1x USB-A 2.0 (480Mb/​s), 2x Thunderbolt 4 (40Gb/​s), 2x HDMI 2.1, 1x RJ-45 2.5Gb LAN (Intel I226-V), 1x 1x DC-Connector
  • Con [more]

    Share

309.00 EUR
incl. 19% VAT, plus shipping
Available in 1-3 days
Add to cart

  • Formfactor: UCFF (4"x4")
  • CPU: Intel Core 3 100U, 2C+4c/8T, 1.20-4.70GHz, 10MB+8MB Cache, 15-55W TDP (PBP/MTP), Codename "Raptor Lake-U" (Raptor Cove + Gracemont, Intel 7)
  • RAM Slots: 2x DDR5 SO-DIMM, dual PC5-41600S/​DDR5-5200, max. 96GB (UDIMM)
  • Storage: 1x M.2/​M-Key (PCIe 4.0 x4, 2280), 1x M.2/​M-Key (PCIe 4.0 x4, 2242)
  • Graphics: Intel Graphics (iGPU), 4Xe/64EU/512SP, 1.25GHz, Architektur "Xe-LP / Gen 12.2" (Raptor Lake GT1)
  • Connectors rear: 1x USB-A 3.1 (10Gb/​s), 1x USB-A 2.0 (480Mb/​s), 2x Thunderbolt 4 (40Gb/​s), 2x HDMI 2.1, 1x RJ-45 2.5Gb LAN (Intel I226-V), 1x 1x DC-Connector
  • Connectors front: 1x USB-C 3.2 (20Gb/​s), 2x USB-A 3.1 (10Gb/​s)
  • Wireless: Wi-Fi 6E (WLAN 802.11a/​b/​g/​n/​ac/​ax, 2x2, Intel AX211, soldered), Bluetooth 5.3
  • Powersupply: external, 1x DC-in (90W/​19V)
  • Specials: 4x Display Support, suitable for continuous operation


RAM and SSD not included!

Data sheet Download (PDF)
Data sheet Print view
