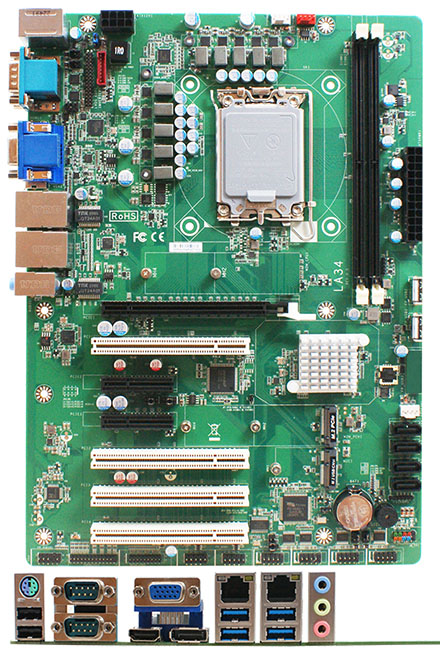

Jetway LA34-H6100 ATX (Intel Alder Lake-S H610, LGA1700, 2x LAN)

Jetway LA34-H6100 ATX (Intel Alder Lake-S H610, LGA1700, 2x LAN)
  • Intel Comet Lake !
  • 2* LAN !
  • ATX Formfactor !

305x220mm size with 14th/13th/12th Intel® Core™ i9/i7/ i5 /i3, Celeron & Pentium® LGA1700 Socket Processor, DDR5 up to 64GB, support 3 display

  • Intel® 14th/13th/12th LGA1700 Socket Processor (Max.125W TDP)
  • Intel® Alder Lake-S H610/H610E Chip
  • 2* DDR5 4800MHz UDIMM up to 64GB
  • 1* VGA, 1* HDMI, 1* DP, 1* LVDS/EDP(Option)
  • 1* 2.5GbE, 1* GbE
  • 6* COM, 4* USB3.2 (Gen.1), 6* USB2.0, 2* USB2.0 Type-A (Vertical)
  • 1* M.2 M-key (2280, NVMe, PCI-Ex2 Interface), 1* M.2 E-key (2230, CNVi Interface)
  • 1* PCI-Ex16 (Gen.4), 2* PCI-Ex4 (Gen.3), 4* PCI
  • Onboard TPM2.0(Option)
  • ATX Power

< [more]

Share

339.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart

305x220mm size with 14th/13th/12th Intel® Core™ i9/i7/ i5 /i3, Celeron & Pentium® LGA1700 Socket Processor, DDR5 up to 64GB, support 3 display

  • Intel® 14th/13th/12th LGA1700 Socket Processor (Max.125W TDP)
  • Intel® Alder Lake-S H610/H610E Chip
  • 2* DDR5 4800MHz UDIMM up to 64GB
  • 1* VGA, 1* HDMI, 1* DP, 1* LVDS/EDP(Option)
  • 1* 2.5GbE, 1* GbE
  • 6* COM, 4* USB3.2 (Gen.1), 6* USB2.0, 2* USB2.0 Type-A (Vertical)
  • 1* M.2 M-key (2280, NVMe, PCI-Ex2 Interface), 1* M.2 E-key (2230, CNVi Interface)
  • 1* PCI-Ex16 (Gen.4), 2* PCI-Ex4 (Gen.3), 4* PCI
  • Onboard TPM2.0(Option)
  • ATX Power


Model – LA34-H6100
– LA34-H6102 (TPM2.0)
Form Factor – ATX (305 * 220mm)
Processor System – Intel® 14th/13th/12th LGA1700 Socket Core i9/i7/i5/i3/Pentium/Celeron Processor (Max. 125W TDP)
– Intel® Alder lake-S H610/H610E chipset
– AMI Flash ROM BIOS
Memory – 2* DDR5 4800MHz Dual Channel UDIMM up to 64GB
Storage – 4* SATAIII
– 1* M.2 M-key (2242/2280 PCI-Ex2 Gen.3 interface)
Expansion – 1* M.2 E-key (2230, USB2.0+CNVi interface)
– 1* PCI-Ex16 (Gen.4)
– 2* PCI-Ex4 (Gen.3, PCIE2 Interface: PCI-Ex1)
– 4* PCI
Ethernet – 1* Intel® I226-V 100/1000/2500Mbps
– 1* Intel® I219-V 10/100/1000Mbps
Graphics – Intel® HD Graphics, shared memory
– 1* HDMI2.0 (Max Resolution: 4096×2304@60Hz)
– 1* DP1.4 (Max Resolution: 7680×4320@60Hz)
– 1* VGA (Max Resolution: 2560*1600@60Hz)
– 1* LVDS/EDP (Max Resolution: 1920*1080@60Hz,Option)
– Support Triple Displays
Audio – HD audio: Realtek ALC897
Watchdog Timer – From Super I/O to drag RESETCON#
– 256 segments (10sec ~ 255min)
Internal I/O – 4* USB2.0 (PH2.54)
– 2* USB2.0 (Vertical)
– 4* RS232 (COM3/4: 5/12V TTL)
– 16bit GPIO (5V) Co-lay LPT
– 1* LVDS/EDP + Inverter (Option for Factory)
– 4* SATAIII
– 1* 24+8pin Power connector
– 1* Chassis intrusion
– 1* FP_ Audio
– 1* PS/2
– 1* SMBUS
– 1* AT model
– 1* CPU FAN Header(Smart FAN)
– 2* SYSTEM FAN Header
External I/O – 4* USB3.2(Gen.1)
– 2* USB2.0
– 1* VGA
– 1* HDMI2.0
– 1* DP1.4
– 2* COM (RS232/422/485)
– 2* RJ45
– 1* Audio (Line-in + Line-out + MIC)
Power ATX PWR(24+8pin), AT/ATX Supported
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
Compliance – CE, FCC, LVD,RoHS, REACH (Option)
Temperature – Operating Temperature: -10 ~ 60° C
– Storage Temperature: -20 ~ 70° C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
OS Support – Windows 10, Windows 11, Linux
