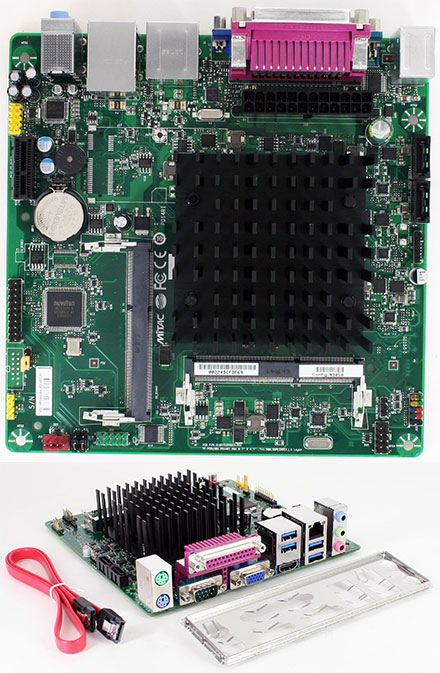

Mitac PD14RI-D-N3050 (Intel D2500HN2) (Intel Braswell Celeron N3050 2x 2.16Ghz CPU) [FANLESS] -Limited offer-

PRODUCT IS CURRENTLY NOT AVAILABLE !
Mitac PD14RI-D-N3050 (Intel D2500HN2) (Intel Braswell Celeron N3050 2x 2.16Ghz CPU) [<b>FANLESS</b>] -Limited offer-
  • 2x 2.16Ghz !
  • 4x USB3.0 !
  • HDMI + VGA !

Limited offer. As long as stock lasts !

This board is produced by MITAC, the OEM producer of Intel D2500HN. This board is based on Intel D2500HN, but is equipped with the moderm Intel Braswell plattform and available until at least end of 2021.

  • Support Intel Braswell Dual core/Quad core processor
  • Intel HD graphics and DriectX 12 support
  • Dual channel DDR3L with two connectors for MAX. 8GB memory
  • Integrated Six-channel High Definition audio
  • Features 2 SATA 6Gb/s
  • Four USB3.0 ports
  • One PCIeX1 connector for the future Add-in card
  • One PCI Express Mini Card connector for expansion card like Wifi
  • [more]

    Share

Limited offer. As long as stock lasts !

This board is produced by MITAC, the OEM producer of Intel D2500HN. This board is based on Intel D2500HN, but is equipped with the moderm Intel Braswell plattform and available until at least end of 2021.

  • Support Intel Braswell Dual core/Quad core processor
  • Intel HD graphics and DriectX 12 support
  • Dual channel DDR3L with two connectors for MAX. 8GB memory
  • Integrated Six-channel High Definition audio
  • Features 2 SATA 6Gb/s
  • Four USB3.0 ports
  • One PCIeX1 connector for the future Add-in card
  • One PCI Express Mini Card connector for expansion card like Wifi
  • Dual Display capability with VGA and HD-Out

- Front Audio, S/PDIF
- 1x PCIe X1
Name Mitac PD14RI (Intel D2500HN2)
Form Factor Mini-ITX Mainboard
CPU Intel® Celeron® Processor N3050
(2M Cache, up to 2.16 GHz)
Chipset Intel Braswell
Graphics VGA + HDMI
Memory 2x SO-DDR3L Low Voltage, 8GB max, Dual channel
Power 24 Pin ATX
LAN 1x Realtek RTL8111G 10/100/1000 MBit
Connectors (rear) - 4x USB 3.0
- 1x LAN RJ-45
- 3x Audio
- 1x PS/2
- 1x LPT
- 1x RS232
- 1x VGA
Audio RealTek ALC662 5.1 (6-channel) High Definition Audio
Connectors (internal) - 2x SATA (6GB/s)
- 1x USB 2.0
- 1x RS232
- Front Audio, S/PDIF
Included - Mitac PD14RI-D (D2500HN2) Mainboard (with 2x 2.16Ghz Braswell Celeron CPU)
- I/O ATX rear plate
- 1x SATA cable
Data sheet Download (PDF)
Data sheet Print view
Mitac Catalogue Download (PDF)
