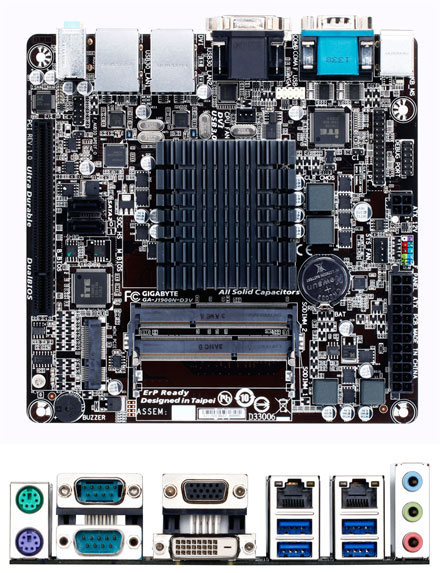

Gigabyte GA-J1900N-D3V (Intel Celeron J1900 BayTrail 4x2.0Ghz, 2x LAN)

PRODUCT IS CURRENTLY NOT AVAILABLE !

3D 360° View

Intel Celeron BayTrail !
Dual Gigabit LAN !
Win7, Win 8 !

Built-in Intel^® Celeron™ J1900 (2.0 GHz) quad-core processor
GIGABYTE Ultra Durable™ 4 Plus Technology
All Solid Capacitors with Humidity Protection New Glass Fabric PCB design
Dual LAN with high ESD Protection
GIGABYTE UEFI DualBIOS™
DVI-D, D-SUB ports on rear panel
Ample USB 3.0 ports with GIGABYTE 3x USB power
GIGABYTE On/Off Charge™ for USB devices
Mini PCI-E expansion slot supports wireless networking cards
PCI expansion slot supports legacy interface cards

CPU	Intel Celeron J1900 4x2.0Ghz
Graphics	Intel GMA
Formfactor	ITX (17x17cm)
RAM	2x SO-DDR-III
Audio	Realtek ALC887 7.1
Base	Intel ITX

USB	2x USB2.0, 4x USB3.0
Firewire	--
IDE/SATA	2 x SATA 3Gb/s
LAN	2x 10/100/1000
Parallel	1x
Serial	2x

no	TV-Out
yes	PCI
yes	Mini-PCI
no	IDE
yes	DVI
yes	800x480 Resolution

yes	Passive-Cooling
no	PCI-Express
no	PCMCIA
yes	SATA
no	CPU changeable
no	Compact Flash

CPU	Built in with an Intel^® Celeron^® Quad-Core J1900 SoC (2.0 GHz) * Do not disassemble the onboard SoC and the heatsink by yourself to avoid damage to these components. 2 MB Cache
Memory	2 x DDR3/-L SO-DIMM sockets supporting up to 8 GB of system memory * If only one DDR3/-L memory module is to be installed, be sure to install it in the SODIMM_1 socket. Dual channel memory architecture Support for DDR3/-L 1333 MHz memory modules Support for non-ECC memory modules
Onboard Graphics	Integrated in the SoC: 1 x D-Sub port, supporting a maximum resolution of 2560x1600 1 x DVI-D port, supporting a maximum resolution of 1920x1080 * The DVI-D port does not support D-Sub connection by adapter.
Audio	Realtek^® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out
LAN	2 x Realtek^® GbE LAN chips (10/100/1000 Mbit)
Expansion Slots	1 x PCI slot 1 x Mini PCI Express x1 slot (The Mini PCI Express slot conforms to PCI Express 2.0 standard.) (For Mini-PCIE card/no mSATA card)
Storage Interface	Integrated in the SoC: 2 x SATA 3Gb/s connectors
USB	Integrated in the SoC: 2 x USB 2.0/1.1 ports (available through the internal USB header) SoC + Renesas^® uPD720210 USB 3.0 Hub: 4 x USB 3.0/2.0 ports on the back panel
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 2 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 2.0/1.1 header 1 x parallel port header 1 x Clear CMOS jumper 1 x chassis intrusion header 1 x debug card header
Back Panel Connectors	1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x DVI-D port 2 x serial ports 4 x USB 3.0/2.0 ports 2 x RJ-45 ports 3 x audio jacks (Line In, Line Out, Mic In)
I/O Controller	iTE^® I/O Controller Chip
H/W Monitoring	System voltage detection CPU/System temperature detection CPU/System fan speed detection CPU/System fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	2 x 64 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for @BIOS Support for Xpress Install Support for APP Center * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. Support for ON/OFF Charge
Bundle Software	Norton^® Internet Security (OEM version) Intel^® Smart Connect Technology
Operating System	Support for Windows 8.1/8 32-bit/64-bit Support for Windows 7 64-bit * To support Windows 7 64-bit, please update the latest BIOS and drivers.
Form Factor	Mini-ITX Form Factor; 17.0cm x 17.0cm
Remark	Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

Data sheet	Download (PDF)
Data sheet	Print view

Please login for creating product ratings.

Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: Average rating, based on 2 ratings

from acquisti@velomat.com am 26.01.2016 |

| See all my comments

On the old motherboard, there was a problem on the bios. Open the boot menu sometimes was not possible. On the new firmware (I suppose) this problem is no more present

Update from :2016-01-26 14:41
Improved the firmware. Not it's much better. On the previous firmware there was a problem: sometimes the boot startup menu not working very well

from wurzelsepp am 09.01.2015 |

| See all my comments

mit seinen 2 Netzwerk Ports eignet sich das Gerät bestens als Router.. Für mich wichtig: das Gerät funktioniert jetzt auch unter Linux ohne Bildschirm.
Ein Hinweis, dass man einen 12V Stromadapter mitbestellen soll, wäre hilfreich

Ich habe vor längerer Zeit ein vergleichbares Modell verbaut - Router, Telefonanlage (mit einer ISDN Karte im PCI Slot), Wlan Basis
