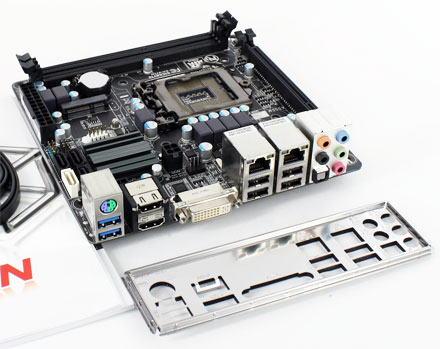

Gigabyte GA-B75N (for i3, i5, i7 [Sockel LGA1155], Ivy/Sandy Bridge, 2x LAN, 2x HDMI) new

PRODUCT IS CURRENTLY NOT AVAILABLE !

3D 360° View

Dual HDMI !
Dual Gigabit LAN !
Gigabyte Features !
Intel Ivy/Sandy Bridge !

Features :
- Intel B75
- RAM : 2x DDR3
- Expansion: 1x PCIe 3.0 x16, 1x Mini-PCIe
- External: 1x DVI-I, 1x HDMI, 2x USB 3.0, 4x USB 2.0, 2x Gb LAN (Realtek), 7.1 Audio (ALC892), 1x PS/2 Combo
- Internal: 2x USB 3.0, 2x USB 2.0, 1x SATA 6Gb/s, 3x SATA II, 1x CPU-Lüfter PWM, 1x Lüfter PWM, 1x serial
- Notes: Mini-ITX, All solid capacitors, UEFI
- Attention! For PCIe 3.0 you need Ivy Bridge CPU !

CPU	Intel Core i3/i5/i7 (LGA1155)
Graphics	Intel HD Graphics
Formfactor	ITX (17x17cm)
RAM	2x DDR-III
Audio	Realtek ALC892
Base	Intel ITX

USB	6x USB2.0, 4x USB3.0
Firewire	--
IDE/SATA	3x SATA 3GB, 1x SATA 6GB, 2x eSATA
LAN	2x 10/100/1000
Parallel	--
Serial	1x

yes	TV-Out
no	PCI
no	Mini-PCI
no	IDE
yes	DVI
yes	800x480 Resolution

no	Passive-Cooling
yes	PCI-Express
no	PCMCIA
yes	SATA
yes	CPU changeable
no	Compact Flash

CPU	Support for Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/ Intel^® Core™ i3 processors/Intel^® Pentium^® processors/Intel^® Celeron^® processors in the LGA1155 package L3 cache varies with CPU (Some Intel^® Core™ processors require a graphic card, please refer "CPU support List" for more information.)
Chipset	Intel^® B75 Express Chipset
Memory	2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR3 1600/1333/1066/800 MHz memory modules * To support DDR3 1600 MHz, you must install an Intel 22nm (Ivy Bridge) CPU. Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor: 1 x DVI-I port, supporting a maximum resolution of 1920x1200 2 x HDMI ports, supporting a maximum resolution of 1920x1200
Audio	Realtek ALC892 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
LAN	2 x Realtek GbE LAN chips (10/100/1000 Mbit)
Expansion Slots	1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) * Whether PCI Express 3.0 is supported depends on CPU and graphics card compatibility.1x Mini-PCIe
Storage Interface	Chipset: 1 x SATA 6Gb/s connector (SATA3 0) supporting up to 1 SATA 6Gb/s device 3 x SATA 3Gb/s connectors (SATA2 1/2/3) supporting up to 3 SATA 3Gb/s devices
USB	Chipset: Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header) Up to 6 USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x serial port header 1 x SATA 6Gb/s connector 3 x SATA 3Gb/s connectors 1 x USB 3.0/2.0 header 1 x USB 2.0/1.1 header 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x Clear CMOS jumper
Back Panel Connectors	1 x PS/2 keyboard/mouse port 2 x HDMI ports 1 x DVI-I port 2 x USB 3.0/2.0 ports 4 x USB 2.0/1.1 ports 2 x RJ-45 ports 1 x optical S/PDIF Out connector 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	System voltage detection CPU/System temperature detection CPU/System fan speed detection CPU fan speed control * Whether the CPU fan speed control function is supported will depend on the CPU cooler you install.
BIOS	2 x 64 Mbit flash Use of licensed AMI EFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
Unique Features	Support for @BIOS Support for Q-Flash Support for Xpress Install Support for EasyTune * Available functions in EasyTune may differ by motherboard model. Support for Auto Green Support for ON/OFF Charge Support for Q-Share Support for EZ Setup
Bundle Software	Norton Internet Security (OEM version) Intel^® Rapid Start Technology Intel^® Smart Connect Technology
Operating System	Support for Microsoft^® Windows 8/7/XP
Form Factor	Mini-ITX Form Factor; 17.0cm x 17.0cm
Remark	Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGA

Data sheet	Download (PDF)
Data sheet	Print view
