CVL700 - HDMI/VGA 7" TFT - Touchscreen USB - PAL/NTSC - IR - Audio [LED-Backlight]

CVL700 - HDMI/VGA 7" TFT - Touchscreen USB - PAL/NTSC -  IR - Audio <b>[LED-Backlight]</b>
3D 360° View
  • LED-Backlight !
  • HDMI !
  • Touchscreen !
  • CarTFT Value Line !

The new "Value Line" from CarTFT.com stands for low priced but nevertheless outstanding display products. Unlike the CTF-series "Value Line" models have a more limited temperature range, a lower luminosity and are not tested for vibration or E1-certification. Also, these displays are not compatible with our all-in-one cable design.

New : LED-Backlight-Technology, with optimized color saturation enabling particular high and shining display. The scale of displayable color nuances is increased by 45% because of the new technology. Conventional LCDs are based on CCFL backlight, which can display approx. 72% of the standard color scale of NTSC (National Television Systems Com
[more]

Share

189.00 EUR
incl. 19% VAT, plus shipping
In Stock (102 pcs)

5 von 5 Sternen
2 ratings
Add to cart
Compare
Front

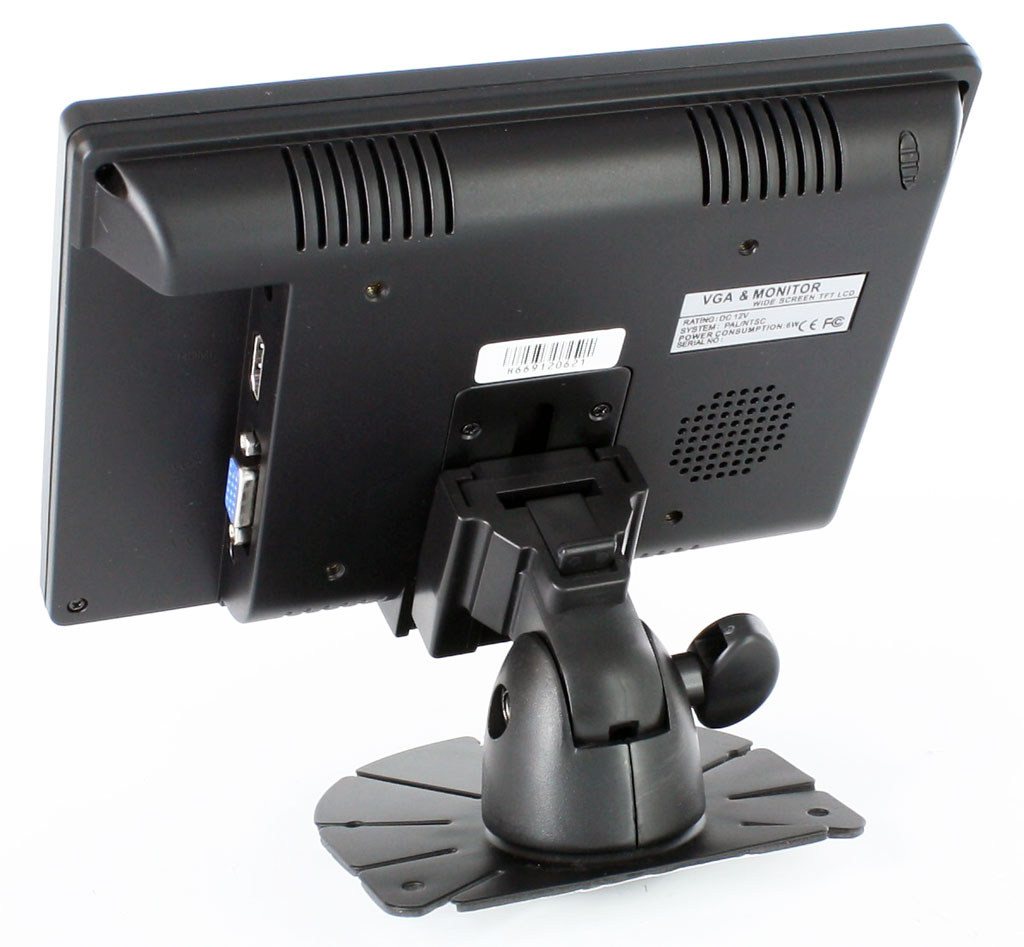

Rear
Side
LCD Size 7"
Aspect Ratio 16:9
VGA resolutions 640x480-1920x1440
Native resolution 800x480
Dot resolution 2400x480
Brightness 400
VGA Input D-SUB 15, HDMI
Video Input 1x PAL/NTSC (RCA)
Audio Input Cinch
Touchscreen USB
Case color black
Power Input 12VDC
Power Consumption 6W
Case size 182 x 127 x 30 mm
Visible area --
Certificates CE
Style On-Dash
yes Adjustable backlight
no Auto Power-On
no Picture In Picture
yes IR Remote
no Headrest mount
yes TS pencil
no Earphone
no Adjustable video aspect
no Mirrorable video
no Reverse camera input

The new "Value Line" from CarTFT.com stands for low priced but nevertheless outstanding display products. Unlike the CTF-series "Value Line" models have a more limited temperature range, a lower luminosity and are not tested for vibration or E1-certification. Also, these displays are not compatible with our all-in-one cable design.

New : LED-Backlight-Technology, with optimized color saturation enabling particular high and shining display. The scale of displayable color nuances is increased by 45% because of the new technology. Conventional LCDs are based on CCFL backlight, which can display approx. 72% of the standard color scale of NTSC (National Television Systems Committee). With LED-Backlight-Technology 104% of the NTSC-color scale can be displayed. This results in displaying in a highly realistic manner.

The new CVL700 will convince you. Its the ideal display- and control unit for your Laptop, CarPC or HTPC. With help of the touchscreen functionality, the PC can be controlled comfortable with your fingers. The briliant VGA-/HDMI-display enables a maximum readability and sharpness.

The device has integrated Stereo-speakers. An AC-Home adapter and a cigarette lighter adapter is included with the package, as well as an IR-remote control unit.

Driver-CD included, compatible with :
- Windows 95/98/ME/NT4/2000/XP/7/8/8.1/10
- XP Tablet PC Edition
- Windows CE 2.12, 3.0, .net
- Linux RedHat,Mandrake,..
- Macintosh OS 9.x, 10.x
- DOS,..


Spezifikationen
Bildgröße 7" digital
Bildverhältnis 16:9 wide TFT screen
Dot Resolution 2400x480= 1,152,000 dots
Physical Resolution 800x480
Supported Resolutions 640x480-1920x1440
Power input DC 12V
Power consumption max. 6W
Video system 1x Video inputs (PAL/NTSC)
1x VGA input
1x HDMI input
Brightness 400 cd/m²
Contrast 500:1
Operating Temperature -20° bis 60°C
Dimensions Display Case : 182x127x30 mm
Video input signal 1.0Vp-p, composite video
Features Full function OSD control (englisch)
Eingebaute Stereo-Lautsprecher
LED-Hintergrundbeleuchtung

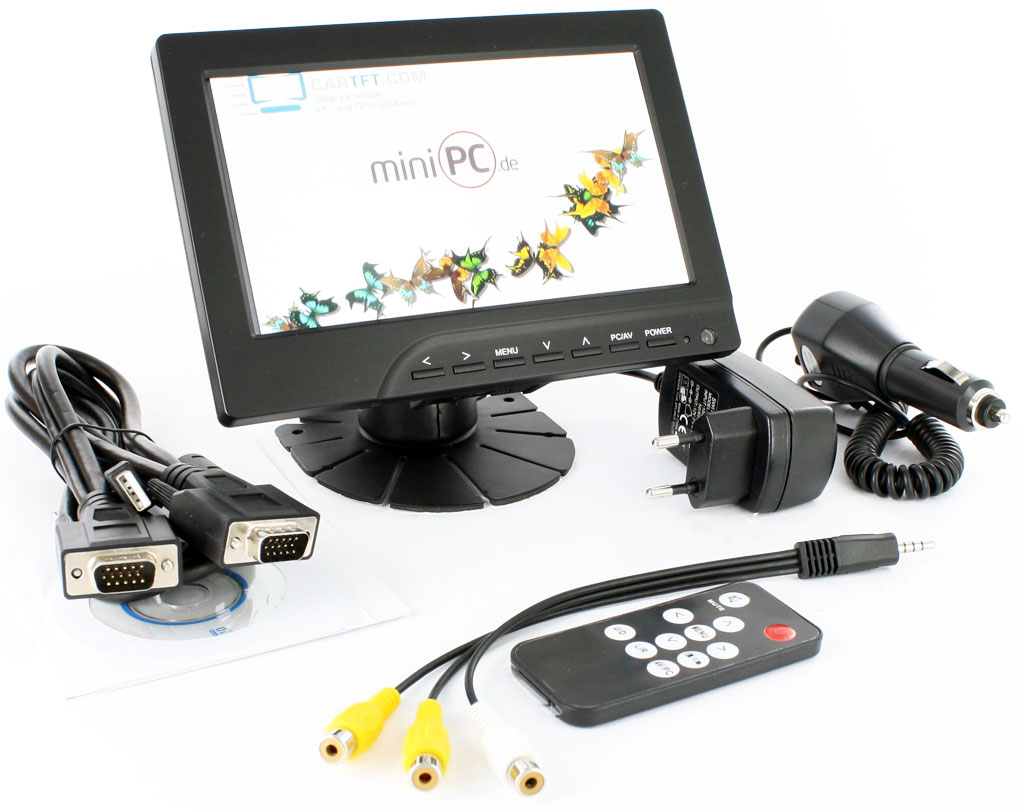

Lieferumfang - 7" VGA/HDMI Touchscreen TFT mit Video/Audio-Untersützung
- Infrarot Fernbedienung
- Dash Monitor-Halterung
- VGA / Video / Audio / USB Anschlusskabel
- Netzteil f. Anschluss an 230V Steckdose
- Zigarettenanzünder-Adapter
- Touchscreen Treiber-CD
- Touchscreen Bedienstift
- Handbuch
Data sheet Download (PDF)
Data sheet [Energy efficiency class] Download (PDF)
Data sheet Print view
Touchscreen Driver Download
