CTF1020-SH V2 - VGA 10.2" TFT - Touchscreen USB - Video - Autodimmer - Audio (LED, 800nits) -TRANSFLECTIVE PRO-

PRODUCT IS CURRENTLY NOT AVAILABLE !
CTF1020<b>-SH</b> V2 - VGA 10.2" TFT - Touchscreen USB - Video -  Autodimmer - Audio <b>(LED, 800nits) -TRANSFLECTIVE PRO-</b>
3D 360° View
  • Auto-Dimmer !
  • Audio speakers !
  • Auto-PowerOn !
  • Slim design !

The CTF1020-SH delivers an impressive 800 cd/m2 light output – a light level that places it at the very top end of the market in terms of brightness. This light output is achieved with no increase in power consumption over previous models. The temperature range is -35°C to 85°C. The contrast ratio is 400:1.

New ! With special sunlight readable transflective TFT and Anti-Glare surface!

Using transflective panels and Anti-Glare touchscreens enables readability even under direct sunlight. For the first time with midrange-models, TFT panels with transflective technology are used. An anti-reflexion-coating additionally minimizes reflections on the sur
[more]

Share

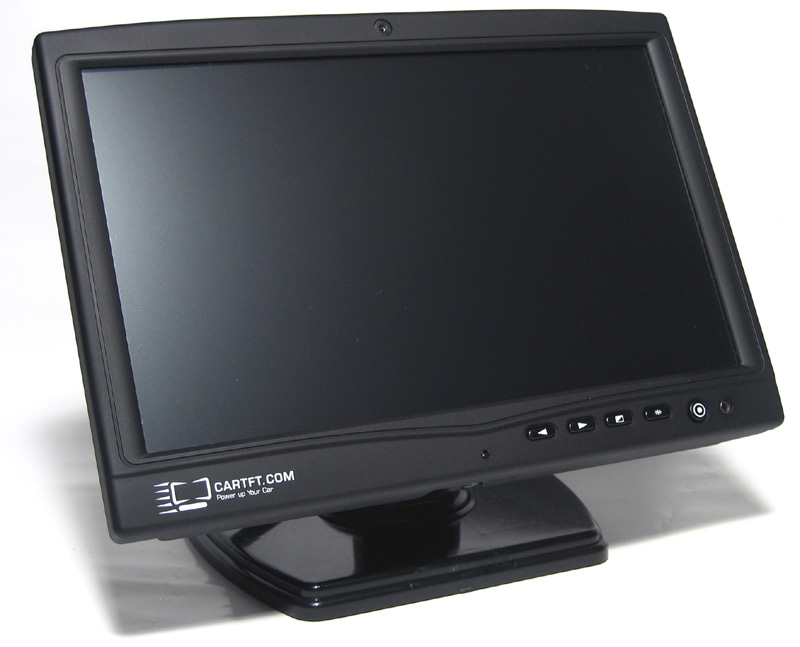

Front

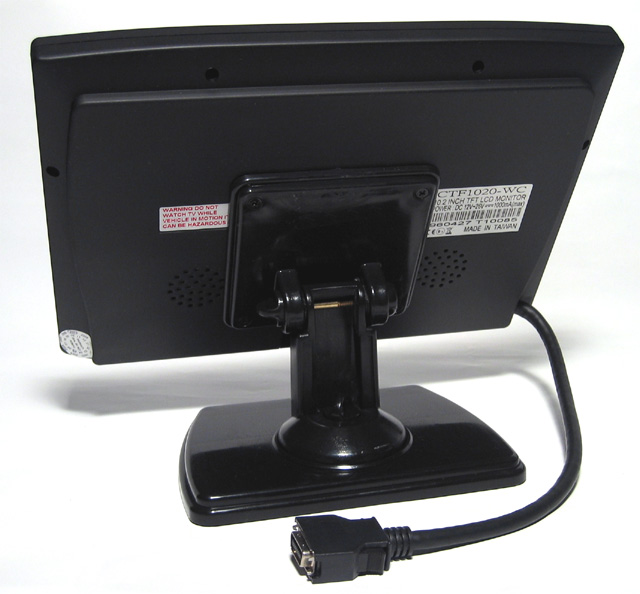

Rear
Side
LCD Size 10.2"
Aspect Ratio 16:9
VGA resolutions 640x480-1920x1200
Native resolution 800x480
Dot resolution 2400x480
Brightness 800
VGA Input D-SUB 15
Video Input 3x PAL/NTSC (RCA)
Audio Input 2x RCA (Stereo)
Touchscreen USB
Case color black
Power Input 12-24VDC
Power Consumption 12W
Case size 250 x 176 x 26 mm
Visible area 222 x 134 mm
Certificates CE, E1
Style On-Dash
yes Adjustable backlight
yes Auto Power-On
no Picture In Picture
yes IR Remote
no Headrest mount
yes TS pencil
no Earphone
no Adjustable video aspect
yes Mirrorable video
yes Reverse camera input

The CTF1020-SH delivers an impressive 800 cd/m2 light output – a light level that places it at the very top end of the market in terms of brightness. This light output is achieved with no increase in power consumption over previous models. The temperature range is -35°C to 85°C. The contrast ratio is 400:1.

New ! With special sunlight readable transflective TFT and Anti-Glare surface!

Using transflective panels and Anti-Glare touchscreens enables readability even under direct sunlight. For the first time with midrange-models, TFT panels with transflective technology are used. An anti-reflexion-coating additionally minimizes reflections on the surface. Transflective TFTs combine the advantages of reflexiv and transmissive display systems. The incoming light, which is making the surface of other display types to be unreadable, is reflected by the rear side of the panel. Because of this passive relexion the image is winning on brilliance. During dark light conditions the readability is still ensured by a transmissive backlight.

New : LED-Backlight-Technology, with optimized color saturation enabling particular high and shining display. The scale of displayable color nuances is increased by 45% because of the new technology. Conventional LCDs are based on CCFL backlight, which can display approx. 72% of the standard color scale of NTSC (National Television Systems Committee). With LED-Backlight-Technology 104% of the NTSC-color scale can be displayed. This results in displaying in a highly realistic manner.

The new CTF-1020 TFT-Display is the latest development from CarTFT.com and comes with many nice features. In any case it is the ideal display- and input-unit for your Laptop, CarPC or HTPC. With the touchscreen functionality you easily can control your PC. The briliant VGA-display ensures a maximum readability and sharpness.

The device has integrated Stereo-speakers, a rear camera input and the Auto dimmer sensor in the front will enable perfect viewing pleasure also during the night.

AC-Adapter for home usage and a car cigarette lighter adapter is included as well as the IR-remote-control unit and the extra long (2,5 meters) All-In-One connector cable.

The CTF-1020 can be used with any PC/MAC with VGA- and USB port.

Driver-CD included, compatible with :
- Windows 95/98/ME/NT4/2000/XP/7/8/8.1/10
- XP Tablet PC Edition
- Windows CE 2.12, 3.0, .net
- Linux RedHat,Mandrake,..
- Macintosh OS 9.x, 10.x
- DOS,..





Displays with True-800x480-Support achieve a pixel accurate view at 800x480@70Hz

Specifications
Screen size 10.2" digital
Aspect Ratio 16:9 wide TFT screen
Dot Resolution 2400x480= 1,152,000 dots
Physical Resolution 800x480
Supported Resolutions 640x480-1920x1200
Color configuration RGB stripe
Power input DC 12/24V
Power consumption max. 12W
Video system 3x Video inputs (PAL/NTSC)
1x VGA input
Dimensions Display Case : 250mm x 176mm x 26mm
Display : 222 x 134 mm
Video input signal 1.0Vp-p, composite video
Brightness 800 cd/m²
Contrast 400:1
Vibration IEC68-2-6
Operating Temperature -30° to 85°C
Features Full function OSD control (english)
Built-in Stereo-speakers
Auto-Dimmer for TFT backlight
Auto Power On/Off
VESA compliant mounting holes (75mm) + metal rail
Automatic switching to rear camera (by signal detection on AV3)

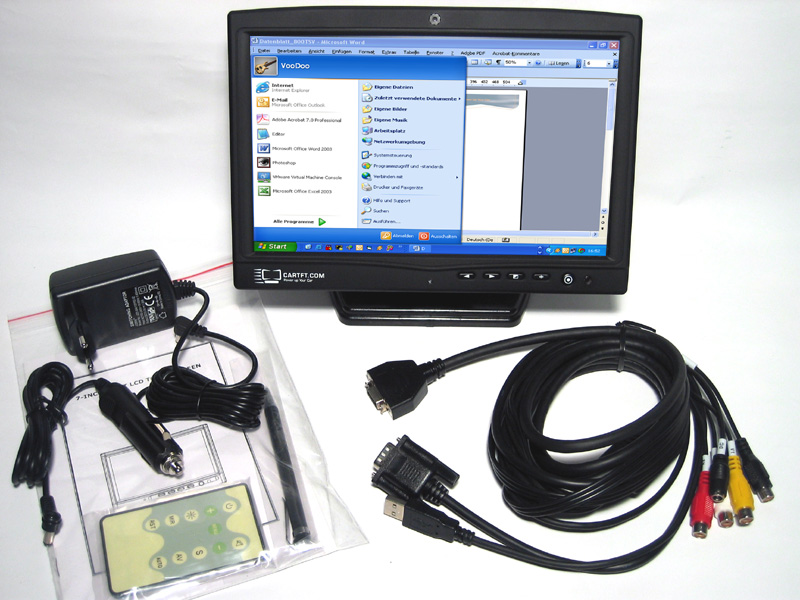

What is included ? - 10.2" VGA Touchscreen TFT with Video/Audio-support
- Infrared Remote Control
- Car dash VESA mounting bracket
- Touchscreen pencil
- VGA/Video/Audio/Touchscreen-cable (all-in-one !) 2.5 meters length
- Power Adapter f. EU 230V
- Cigarette Lighter Adapter
- Touchscreen Driver-CD
- Manual
