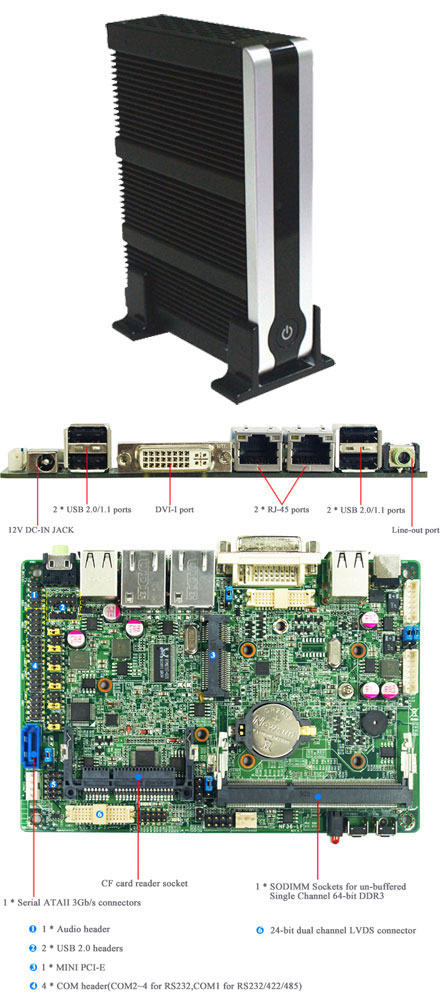

Jetway JBC362F36W-2600-B (Intel Atom N2600 1.6Ghz, WLAN, 2x Gigabit LAN) [FANLESS] *new*
PRODUCT IS CURRENTLY NOT AVAILABLE !
Fanless PC barebone (you need RAM+HDD/SSD for a full pc).
Because of its size (152.6 x 110 x 34.8 mm ! 0.6 liters !) the system is perfect for these applications :
- POS
- Digital Signage
- Kiosk
Or use as attractive office-computer or server.
With a stabilized 12V adapter you also can use the barebone in a vehicle.
Please login for creating product ratings.
from andrea.garbato am 21.11.2013
|
from 7oyPS3yJ am 20.10.2013
|
from berselli am 21.06.2013
|
from jsge am 16.07.2012
|
| See all my comments
Your rating:
Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating.
If you want you also can leave a comment.
Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And
you can benefit from reports other customers are giving.
In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters)
on your account. The credit will be substracted automatically on your next order !
We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders).
"Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.
|
Customer ratings:
Average rating, based on 5 ratings |
from andrea.garbato am 21.11.2013
|
*** NOT RECOMMENDED FOR LINUX USERS
Very small, quite and silent pc. Don't touch it as it's always very hot. I bought it to use as a home media server but I realized linux GPU driver support is non existent. You'll send hours to get things working decently on linux and then you realize it's a NOGO. So forget to use it as a media center on linux.
The lack of support for linux is really a shame. They use to call it cedar trail but the perfect name would be cedar TRAIL.
Who sells this product should clearly state IS NOT LINUX READY.
from 7oyPS3yJ am 20.10.2013
|
The CPU's TDP is 3.5W, but the CPU temperature has been always 50C or higher,
can not touch the case.
The power consumption is about 12.5W with a SO-DIMM 2GByte only installed,
it didn't change when EIST was enabled.
I have an other product intel D2500CC, that
power consumption is 15.0W....
The included SATA cable is halfway length,
I was struggling to collapse the cable.
Perhaps, more longer cable is easy to handle.
from berselli am 21.06.2013
|
Unfortunately very hot temp. in summer reaches 60C.
It works as well as a firewall with pfSense but you must first disable the COM ports from bios, otherwise it will not install.
Problem with the Wifi card.
Improvable consumption
Italiano ->
Purtroppo scalda molto la temp. in estate arriva a 60C.
Funziona come bene come firewall con Pfsense ma si devono disabilitare prima le porte COM da bios, altrimenti non si installa.
Problema anche con la Scheda wifi.
Migliorabile il consumo
from jsge am 16.07.2012
|
| See all my comments
Fully satisfied from the Jetway, excepted about the video controller (GMA_360) which is a nightmare to get working at a decend level under Linux.
Everythign else works fine with ClearOS 6.2, this makes a low cost , low power consumption home server.
Nice little computer. I plan to use it as a firewall with dhcp server and local DNS server. The dual port are well suited for that.
I installed Ubuntu server 14.04LTS for that. I had to add the option "video=LVDS-1:d" to the linux boot parameter otherwise the screen switched to black during the boot process. I didn't try Ubuntu Desktop.
The device is hot, even when Linux is idle. I guess it's because the exteral heat exchanger is minimal.
I removed a star because there are only two screws to attach the SSD disk and the device gets a little too hot.
