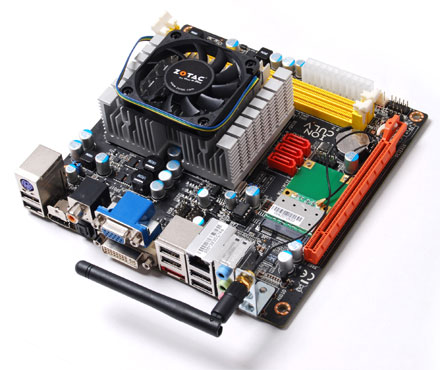

ZOTAC ION ITX P-E (with integrated Intel Celeron 2x 1.2Ghz CPU, WLAN)

PRODUCT IS CURRENTLY NOT AVAILABLE !

3D 360° View

NVIDIA ION !
Mini-PCI Express
HDMI
Intel Celeron

Like Zotace ION ITX F-E, but with Intel Celeron SU2300 CPU instead of Atom and DDR3 insted of DDR2!

Experience fluid and vivid high-definition video playback with the ultra-compact ZOTAC® ION platform. The mini-ITX form factor ZOTAC® ION combines a high-performance NVIDIA® ION graphics processor with a power-efficient Intel® Atom processor for the ultimate eco-friendly platform that has no troubles handling regular web browsing, e-mail, & productivity and HD video playback tasks.

NVIDIA® PureVideo HD technology harnesses the power of the ION's 16 high-speed stream processors for high-definition Blu-ray playback capabilities. PureVideo HD technology decodes [more]

CPU	Intel Celeron SU2300 2x 1.2Ghz
Graphics	NVIDIA ION
Formfactor	ITX (17x17cm)
RAM	2x DDR-III 1066
Audio	Realtek ALC662
Base	Intel ITX

USB	10x USB2.0
Firewire	--
IDE/SATA	3x SATA-II, 1x eSATA
LAN	1x 10/100/1000
Parallel	--
Serial	--

yes	TV-Out
no	PCI
no	Mini-PCI
no	IDE
yes	DVI
yes	800x480 Resolution

no	Passive-Cooling
yes	PCI-Express
no	PCMCIA
yes	SATA
no	CPU changeable
no	Compact Flash

Model	Zotac IONITX-N-E
Type	Mini-ITX Mainboard
CPU	Intel Celeron SU2300 (1.2Ghz, Dual Core), FSB 800Mhz / NVIDIA ION chipset
Graphics	NVIDIA ION Graphics GPU GPU : 450Mhz, Shader : 1100Mhz16 stream processors DirectX 10 / Open GL 2.1
RAM	2x DDR3 1066 RAM (8GB max)
Power	20 pol ATX
Connectors (external)	- 6x USB 2.0 - 1x PS/2 (Keyboard) - 1x HDMI - 1x SPDIF out (Coaxial/Optical) - 1x DVI - 1x eSATA - Audio - 1x LAN 10/100/1000 MBit - 1x VGA - 1x WLAN antenna
SATA	3x SATA (RAID 0, 1 und 0+1)
Connectors (internal)	- 1x MiniPCIe (used by included WLAN 802.11n/g/b module) - 4x USB 2.0 - 3x SATA - 1x Serial - 1x DC-Out
Scope of supply	- Zotac IONITX-P-E - I/O ATX rear plate - 2x SATA cable - 1x SATA Power cable - WLAN module + antenna - Heatsink/fan - Quickstart-Guide - Drivers CD
Dimensions	17cm x 17cm

Data sheet	Download (PDF)
Data sheet	Print view
Specifications [EN]	Download (PDF)

Please login for creating product ratings.

Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: Average rating, based on 1 ratings

from shurikn am 23.05.2011 |

| See all my comments

It is a very powerful motherboard/CPU combination.
Windows 7 is running on a SSD (it helps also) and all is very smooth.
I?ve tested with music and videos and everything goes well.
Moreover the fan of the CPU makes no noise so it is perfect for a mini but powerful CARPC.
