CPU |
Intel Atom D525 2x1,83Ghz (integrated) [Fanless cooling !] |
Chipset |
Intel NM10 Express
Next-Generation NVIDIA ION with 512MB DDR3 dedicated RAM |
Internal drive |
- 1x 2.5" internal slot forSATA HDD/SSD
|
RAM |
2x SO-DDR-III RAM internal slot (667/800, up to 4GB)
|
Power |
12VDC
Power consumption 20W |
Features |
- Integrated WLAN (802.11 b/g/n) with antenna [Atheros] |
Front connectors |
- 2x USB 2.0
- 1x Card Reader (SDC/MMC/MS)
- 1x MIC, 1x Headphone (with optical out S/PDIF support)
- 1x Power button
- 1x Power LED |
Dimensions |
185 x 205 x 30mm (HxWxD) |
Rear connectors |
- 2x USB 2.0
- 1x RJ-45 LAN (10/100/1000Mbit) [Realtek RTL8111DL]
- 1x DVI-I (Analog + Digital)
- 1x HDMI
- 1x eSATA /USB 2.0 combo port
- 1x Antenna port f. WLAN
- 1x DC Power connector (12V) |
|
|

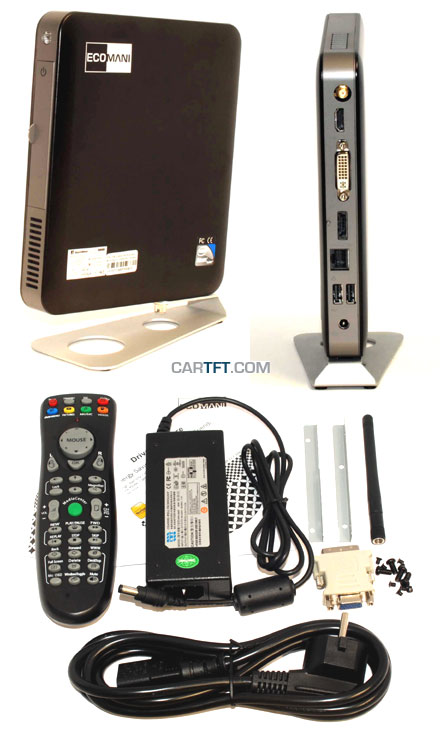

Scope of supply |
- Jetway JBC600C993-52W-BW Barebone |
|
- DriverCD |
|
- Quickstart-Guide |
|
- AC/DC Adapter (100-240VAC, 12VDC/5A) + EU power cord |
|
- DVI-DSUB-15 VGA Adapter |
|
- Screws and 2.5" installation rails |
|
- Stand |
|
- PC remote control unit |
|
- WLAN antenna |
by
http://www.jetway.com.tw/jw/download_address.asp?downid=10090&proname=JBC600C99352W-BW%20(Mini-top)&downtype=Manual-English&isbios=
JBC600C99352W-BW (Mini-top) has fan! Does Jetway JBC600C993-52W-BW have fan??? Thanks for answer.
