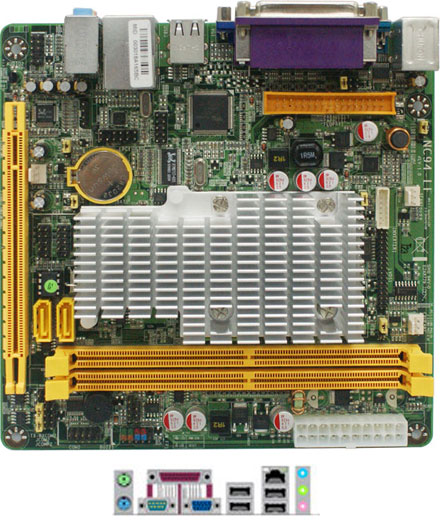

Jetway NC94FL-525-LF (with integrated Atom 2x 1.8Ghz CPU) [FANLESS]

PRODUCT IS CURRENTLY NOT AVAILABLE !

Jetway NC94FL-525-LF (with integrated Atom 2x 1.8Ghz CPU) <b>[FANLESS]</b>

Dual-Core !
Intel Atom !
GPIO
FANLESS !

The Jetway NC94FL-525-LF is an alternative mainboard for Intel D525.

CPU	Intel Atom D525 2x 1.8Ghz
Graphics	Intel GMA 3150
Formfactor	ITX (17x17cm)
RAM	2x DDR-II 677/800
Audio	Realtek ALC662
Base	Intel ITX

USB	8x USB 2.0
Firewire	--
IDE/SATA	2x SATA
LAN	1x 10/100
Parallel	2x
Serial	2x

yes	TV-Out
no	PCI
no	Mini-PCI
no	IDE
no	DVI
yes	800x480 Resolution

yes	Passive-Cooling
yes	PCI-Express
no	PCMCIA
yes	SATA
no	CPU changeable
no	Compact Flash

RAM :

CPU	INTEL ® Atom Processor D525 (45nm,1.80GHz,1024MB L2 Cache)
Chipset	INTEL® Atom Processor D510 / D525 + NM10 Express Chipset
Memory	2 * 240-pin DIMM Sockets for un-buffered Single Channel DDR2 800/667 SDRAM up to 4 GB
Expansion Slots	1 * PCI-E x16 slot (by 4)
Storage	2 * Serial ATA2 3Gb/s connectors 1 * Floppy connector
Audio	Realtek ALC662 6-Channel HD Audio CODEC w SPIF in and out
Ethernet LAN	INTEL 82552V 10M/100M LAN
USB	Embedded 8 * USB 2.0/1.1
Special Features	- Intel Atom Processor D525 - Support DC FAN - Support CPU Smart Fan - Support Watch Dog Technology
Rear Panel I / O	- 4 * USB 2.0/1.1 ports - 1 * COM port - 1 * Parallel port - 1 * PS/2 Mouse & 1 * Keyboard connector - 1 * RJ-45 port - 3 * Audio I/O ports ( Line-in, mic and line-out ) - 1 * VGA port
Internal I / O	- 2 * USB 2.0/1.1 headers for 4 USB 2.0 ports - 3 * NB / Chassis Fan connectors; - 1 * 20-pin ATX Power connector - 1 * GPIO header - 1 * 18-bit Single Channel LVDS header - 1* CD IN - 1LPC - 1 AUDIO header - 1* RS232/RS422/RS485 connectors
BIOS	Award 8MB SPI Flash ROM
Form Factor	Mini ITX Form Factor(17cmx17cm)

Scope of supply	- Jetway NC94FL-525-LF ITX Mainboard
	- DriverCD
	- Manual
	- 1x SATA cable
	- ATX I/O shield

Data sheet	Download (PDF)
Data sheet	Print view
Specifications [EN]	Download (PDF)
