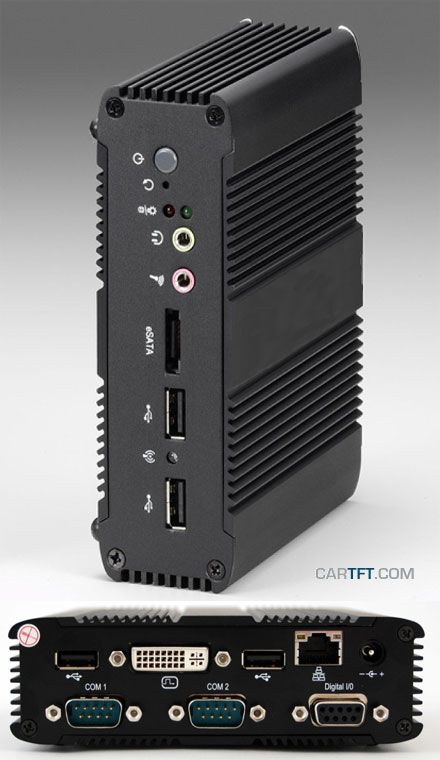

QBox-PC (Intel Atom 1.6Ghz, 1024MB RAM) [FANLESS] (Lead-time approx. 4 weeks)

PRODUCT IS CURRENTLY NOT AVAILABLE !
QBox-PC (Intel Atom 1.6Ghz, 1024MB RAM) [<b>FANLESS</b>] (Lead-time approx. 4 weeks)
  • Fanless !
  • 1GB RAM !
  • 1.6 Ghz !

Fanless PC.

Because of its size (130 x 40 x 110 mm ! 0.6 liters !) the system is perfect for these applications :
- POS
- Digital Signage
- Kiosk

Or use as attractive office-computer or server.

Because of the wide power input range of 9-24V the system also can be powered by a vehicle battery (with a min. order qty. of 25 units we can offer you suitable connector cables).



[more]

Share

Fanless PC.

Because of its size (130 x 40 x 110 mm ! 0.6 liters !) the system is perfect for these applications :
- POS
- Digital Signage
- Kiosk

Or use as attractive office-computer or server.

Because of the wide power input range of 9-24V the system also can be powered by a vehicle battery (with a min. order qty. of 25 units we can offer you suitable connector cables).




CPU Intel Atom N270 1,6Ghz (integrated) [Fanless cooling !]
Chipset Intel 945GSE / ICH7-M
Internal drive - 1x 2.5" internal slot for HDD/SSD
RAM 1x SO-DDR-II RAM internal slot (1x 1GB module already integrated)
Audio AC97 Codec
Power 9-24VDC
Power consumption 20W
Features Watchdog Timer
Dimensions 130 x 40 x 110 mm (WxHxD)
Weight 750g
External connectors - 1x Line-Out 3.55mm
- 1x MIC-In 3.55mm
- 4x USB 2.0 (2x Front, 2x Rear)
- 1x RJ-45 LAN (10/100/1000Mbit)
- 1x DVI-I (Analog + Digital)
- 2x COM (RS-232/422/485, 5V/12V voltage selected in BIOS)
- 1x Digital I/O
- 1x DC Power connector (9-24V)

Scope of supply - QBOX
  - Driver CD
  - Quickstart-Guide
  - AC/DC Adapter (100-240VAC, 12VDC/2.5A)
Data sheet Download (PDF)
Data sheet Print view
Assembling Tutorial [DE] Download (PDF)
Assembling Tutorial [EN] Download (PDF)
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 5 von 5 Sternen
Average rating, based on 6 ratings
4 von 5 Sternen from jllull am 26.04.2011 | | See all my comments

Great, good size and without noise

4 von 5 Sternen from vertica am 10.12.2010 |

This is a really nice little unit. Bought it for the company I work in, as an info-screen computer, which could be tugged away. Installed Windows 7 on this and works fine as long you?re not running cpu and/or graphics heavy applications on it.
One note is that it gets quite warm, but considering that it?s a passive cooled machine, I guess it expectable. I would suggest only tugging it away in areas with good air flow.
Great service from CarPC regarding dialog and delivery time was very quick.

5 von 5 Sternen from d5zpoX20 am 02.10.2010 | | See all my comments

Endlich eine professionelle Lösung für mein Schiff, Spitze

5 von 5 Sternen from sailgrace am 21.04.2010 | | See all my comments

Installed the QBOX in a Beneteau 510 Oceanis. Great piece of machine, intalls like a dream! I put a 500 GB harddrive and installed XP through an external USB DVD drive whith no problem. The DVI-I monitorcable is extended to 12 meters where I had to go down a little bit om the screen resolution, but still a great picture.There are much better solutions then to extend, got a bit lazy there! It runs as a navigation and multimedia entertainment system. Attached to it is also a Skymate satellite communicator, GPS and an IceNet system. Working on to integrate Raymarine instruments to the system. Suddenly my sailboat turned into a mobile fully equipped office at an amazing low cost. Now I´m looking on the frameless monitors to expand the system. A bit sorry about that there are no waterprotected marine screens available om your homepage.

5 von 5 Sternen from limerket am 28.02.2010 |

Perfect pc for embedded applications.
But be carefull where you place it, it is passively cooled, so the outside of the box becomes quite warm. You can't burn yourself, but i estimate about 40 degC
